Processor |
Supported CPU Series |
Intel 2nd Gen. Core i3/ i5/ i7
series processors |
|
Socket Type / Q'ty |
LGA 1155/ (1) |
|
Thermal Design Power (TDP) wattage |
Max up to 95W |
|
Chipset |
PCH |
Intel Q67 |
|
Super I/O |
Nuvoton 5577D |
|
Memory |
Supported DIMM Qty |
(4) DIMM slots |
|
DIMM Type / Speed |
Unbuffered Non-ECC DDR3 / 1333/1066 |
|
Capacity |
Up to 32GB |
|
Memory channel |
2 Channels |
|
Memory voltage |
1.5V |
|
Expansion Slots |
PCI-E |
(1) PCI-E Gen.2 x16 slot / (1) PCI-E
Gen.2 x8 slot (w/ x4 link) / (1)
PCI-E Gen.2 x1 slot |
|
PCI |
(1) PCI 32-bit slot (5.0V) |
|
LAN |
Port Q'ty |
(2) |
|
Controller |
Intel 82583 |
|
PHY |
Intel 82579 |
|
Storage |
SATA |
Connector |
(6) SATA |
|
Controller |
Intel Q67 |
|
Speed |
(2) 6.0 Gb/s (blue color), (4) 3.0
Gb/s (black color) |
|
RAID |
RAID 0/1/10/5 (Intel RST) |
|
Graphic |
Connector type |
D-Sub 15-pin / DVI-D / Display port
1.1 / Only two video output at the
same time |
|
Resolution |
Up to 1920x1024 |
|
Chipset |
Intel Q67 |
|
Audio |
Chipset |
Realtek ALC888 |
|
Feature |
High Definition Audio |
|
Input /Output |
USB |
(9) USB2.0 ports (4 at rear, 4 via
cable, 1 type A onboard), (2) USB3.0
ports |
|
COM |
(4) headers |
|
VGA |
(1) D-Sub 15-pin VGA port / (1)
Display port 1.1 |
|
DVI |
(1) connector |
|
Audio |
LINE_IN, LINE_OUT, MIC_IN connectors |
|
RJ-45 |
(2) GbE ports |
|
Power |
SSI/ATX 24-pin + 4-pin power
connectors |
|
Front Panel |
(1) 2x12-pin SSI front panel header |
|
SATA |
(4) SATA-II and (2) SATA-III
connectors |
|
System Monitoring |
Chipset |
Nuvoton 5577D |
|
Voltage |
Monitors voltage for CPU, memory,
chipset & power supply |
|
Fan |
Total (3) 4-pin headers |
|
Temperature |
Monitors temperature for CPU &
system environment |
|
BIOS |
Brand / ROM size |
8MB / AMI |
|
Feature |
Plug and Play (PnP) /PCI2.3 /WfM2.0
/SMBIOS2.3 /PXE boot / ACPI 2.0
power management /Power on mode
after power recovery /
User-configurable H/W monitoring /
Auto-configurable of hard disk types |
|
Physical Dimension |
Form Factor |
Micro ATX |
|
Board Dimension |
9.6"x9.6" (243.8x243.8mm) |
|
Operating System |
OS supported list |
Coming soon |
|
Regulation |
FCC (DoC) |
Class B |
|
CE (DoC) |
Yes |
|
Operating Environment |
Operating Temp. |
0° C ~ 55° C (32° F~ 131° F) |
|
Non-operating Temp. |
- 40° C ~ 70° C (-40° F ~ 158° F) |
|
In/Non-operating Humidity |
90%, non-condensing at 35° C |
|
RoHS |
RoHS 6/6 Compliant |
Yes |
|
Package Contains |
Motherboard |

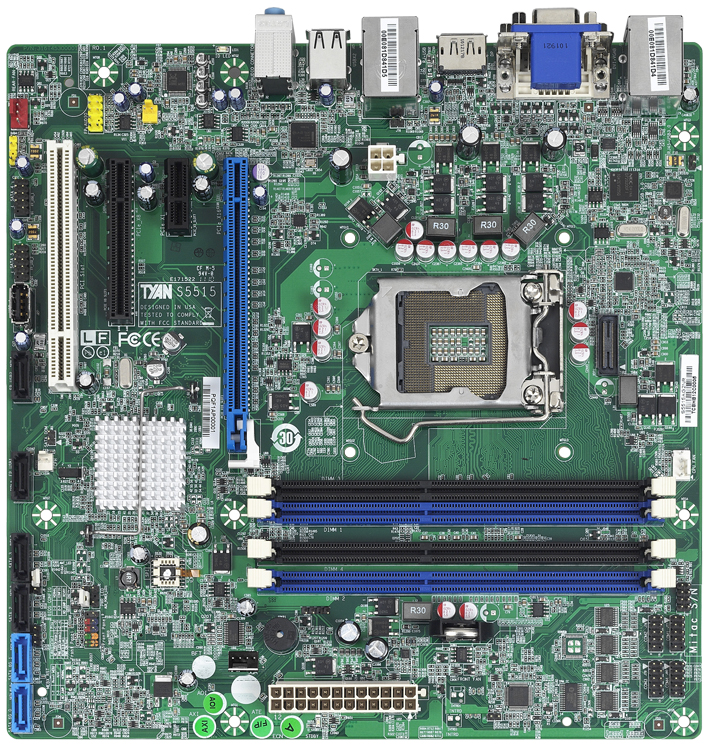

(1) S5515 Motherboard |
|
Manual |
(1) User's manual / (1) Quick Ref.
Guide |
|
Installation CD |
(1) TYAN installation CD |
|
I/O Shield |
(1) I/O Shield |
|
Cable |
SATA |
(6) SATA signal cables |
|
Others |
(1) COM dual-port bracket cable |
