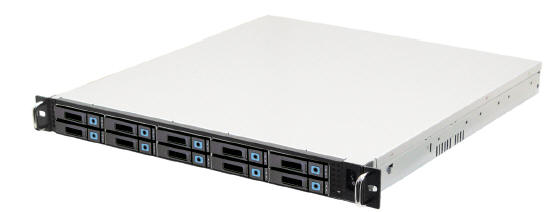

| XD1100 series FC/SAS-to-SAS/SATA RBOD
is the latest RAID subsystem offered for high performance
storage demand. XD1100 can also be configured with dual
4G Fibre Channel host or expansion interfaces.
With 12Gbps (4x SAS) or 8Gbps (Dual FC) host and expansion
bandwidth supporting both SAS and SATA
2.5” size drives, XD1100 offers unparalleled performance,
scalability and versatility in a 1U storage system.
XD1100 is designed with high-efficiency power supply,
support low power small form factor drives, thus
ensuring users a lower total cost of ownership (TCO).
XD1100 enables users to manage storage through Extreme
Storage Manager, a user-friendly web-based
Storage Management GUI that puts remote management and
system administration at user’s fingertips. |
RAID Solution with High Performance, Scalability
and Versatility |
The data bandwidth of XD1100 is 1200MBps per SAS host/expansion
connection, with optional 800MBps dual 4G FC
Connection. Together with a high-speed SAS/FC HBA in
the host server, XD1100 can deliver unprecedented performance.
In a small package users can scale up to support the
growing storage needs by daisy-chaining it to additional
JBOD storage
expansion units. |
Easy Maintenance and Management |
XD1100 series supports SES (SCSI Enclosure Service)
for status monitoring and in-band firmware update. User
can perform
remote management through web-based Xtreme Storage Manager
for system status monitoring. |
| |
 |
 |
| |
|

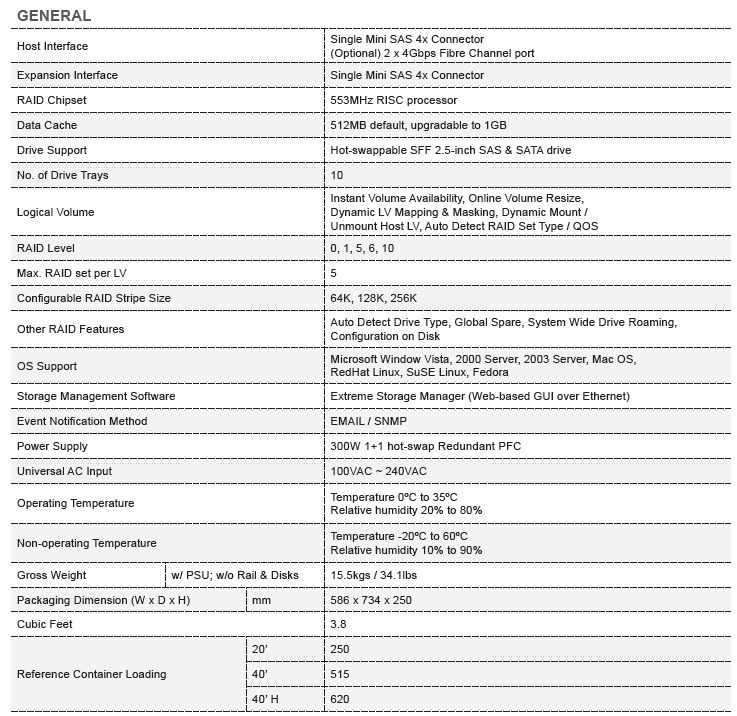

Download Datasheet |
| |
