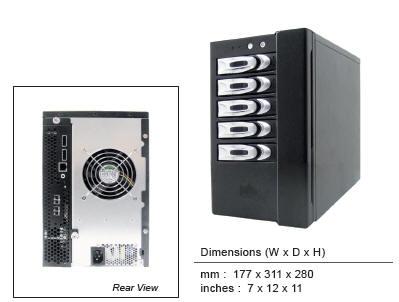

| XD200 FC/SAS/SATA RBOD Tower |
 |
 |
|
| XD200 series FC/SAS-SAS/SATA RBOD is
the next generation desktop RAID subsystem designed
for high performance storage demand. With 12Gbps
wide SAS bandwidth host and expansion interface
supporting both SAS and SATA drives, XD200
quadruples the standard data transfer rate of a
conventional desktop SATA RAID subsystem. In
additions, XD200 can be configured with dual 4G
Fibre Channel host interface with 8Gbps bandwidth
for maximum versatility. XD200 enables users to
manage storage through Extreme Storage Manager, a
user-friendly web-based Storage Management GUI that
puts remote management and system administration at
user’s fingertips. |
High Performance Desktop RAID Solution |
| The data bandwidth of
XD200 is 1200MBps per SAS host connection, with
optional 800MBps dual Fibre Channel Connection. The
performance of the bus is achieved by combining four
SAS channels with each supporting 3Gbps full duplex
speed. Together with a high-speed SAS HBA or SAS
RAID controller card in the host server, this
storage enclosure can deliver an unprecedented
performance. |
Easy Maintenance and Management |
XD200 series supports SES (SCSI
Enclosure Service) for status monitoring and in-band
firmware update. User can perform
remote management through web-based Extreme Storage
Manager for system status monitoring. |
|
 |
|
