| XD200 FC/SAS/SATA RBOD Tower |
 |
 |
XD200 series FC/SAS-SAS/SATA RBOD is
the next generation desktop RAID subsystem designed
for high
performance storage demand. With 12Gbps wide SAS
bandwidth host and expansion interface supporting
both SAS and SATA drives, XD200 quadruples the
standard data transfer rate of a conventional
desktop
SATA RAID subsystem. In additions, XD200 can be
configured with dual 4G Fibre Channel host interface
with
8Gbps bandwidth for maximum versatility.
XD200 enables users to manage storage through
Extreme Storage Manager, a user-friendly web-based
Storage Management GUI that puts remote management
and system administration at user’s fingertips. |
High Performance Desktop RAID Solution |
The data
bandwidth of XD200 is 1200MBps per SAS host
connection, with optional 800MBps dual Fibre Channel
Connection.
The performance of the bus is achieved by combining
four SAS channels with each supporting 3Gbps full
duplex speed.
Together with a high-speed SAS HBA or SAS RAID
controller card in the host server, this storage
enclosure can deliver an
unprecedented performance. |
Easy Maintenance and Management |
XD200 series supports SES (SCSI
Enclosure Service) for status monitoring and in-band
firmware update. User can perform
remote management through web-based Extreme Storage
Manager for system status monitoring. |
| |
 |
| |
|

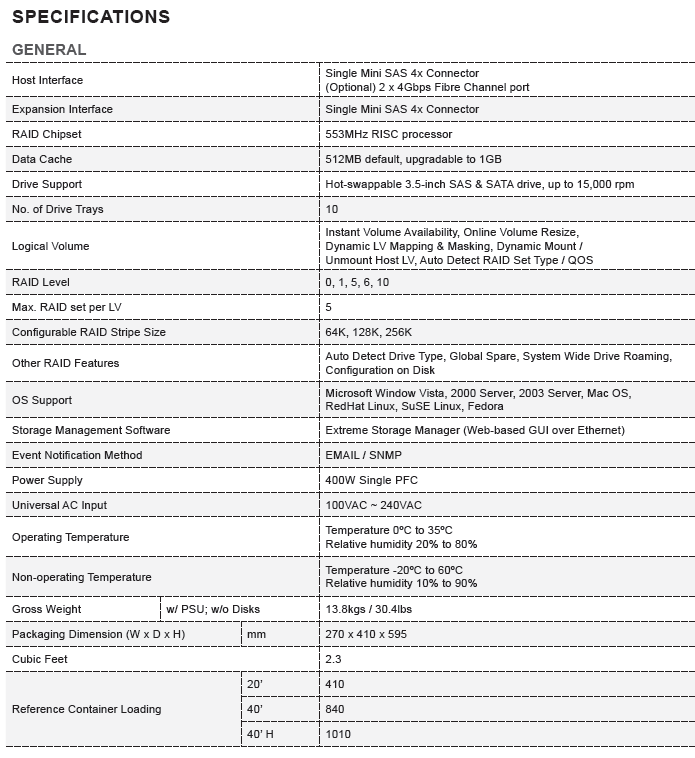

Download Datasheet |
| |
| |
