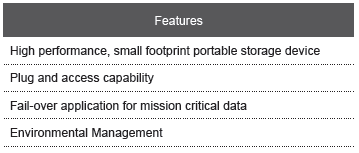

High Performance, Small Foot Print |
Ever imagine having all your video/
graphic files stored in a small storage device and
carry it with you whenever you go? Imagine no more
as such device has come to fulfill your need. How
about retaining up to 2.5TB of storage in a 8x8x5
cubic inches device, and accessing it at 2.4GB/s
bandwidth? Simply populate up to eight (8x) SFF
2.5-inch SAS/SATA hard drives, connect AC-to-DC
power adapter and SFF8088 cables to the MiniBOD to
experience the innovation of portable storage
technology.

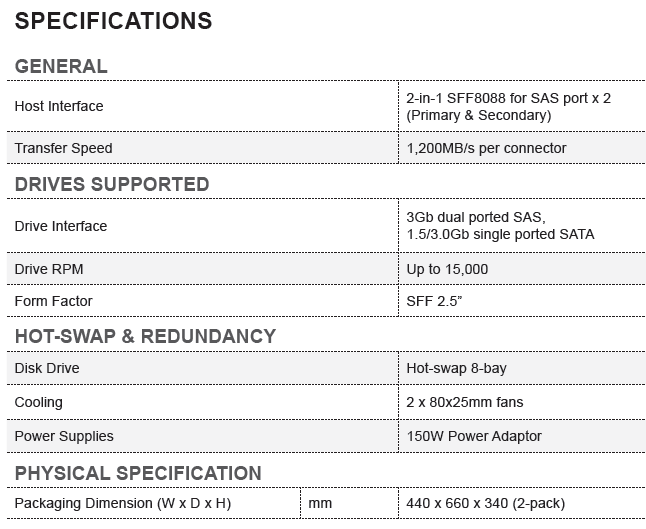

• High IOPS storage reads and writes from/to eight
(8x) Small Form Factor (SFF) 2.5-inch SAS/SATA
drives at up to 2.4GB/s bandwidth.

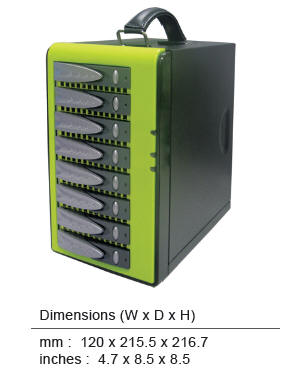

• Up to 2.5TB of storage retained in a portable foot
print of 8 x 8 x 5 cubic inches. |
Plug and Access Capability |
Simply connect the MiniBOD to
SFF8088 external mini-SAS ports of any host server
of identical RAID configuration to access your data
in no time. Both SAS and SATA drives can be
mix-matched in MiniBOD. Users have the options to
use all SATA drives for maximum capacity, or all SAS
drives for optimum performance. MiniBOD users also
have the options to turn on the drive failure
function by simply connecting the rear DB9 port to
the HBA for LED signal transfer.

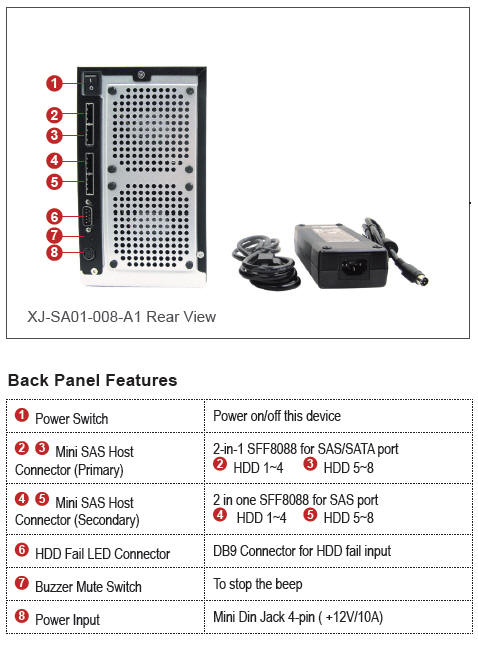

• SFF8088 connector for host servers of the same
RAID configuration.
• AC-to-DC power adapter - 4-pin Din Jack for power
input (+12V/10A) |
Fail-over Application for Mission Critical Data |
| Dual two-in-one SFF8088 mini-SAS
ports available for fail-over applications that need
redundant connectivity to host server. This feature
prevents data loss while users access, edit,
overwrite and save data into this portable storage
device. |
Environmental Management |
Besides its high performance and
portability features, MiniBOD is equipped with
environmental management functionality to protect
your data. Red LEDs indicator and acoustic alarm
will notify users during the incidents of fan
failure and over temperature.

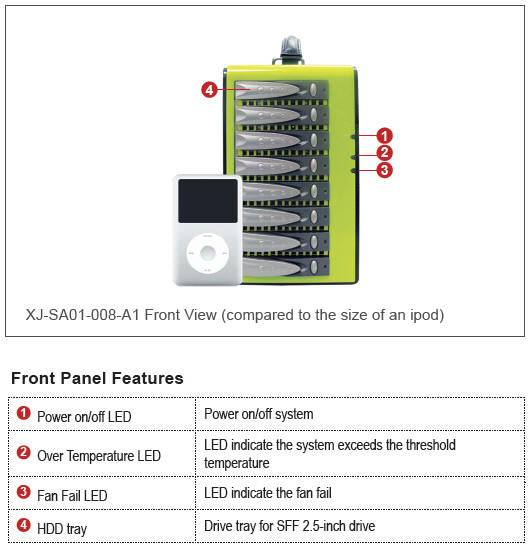

• Red LED indicators for fan failure and temperature
management
• Rear mute switch to offset alarm triggered by fan
failure and over temperature
• DB9 Connector for hard drive failure LED signal
input (active low) driven by Host Bus Adapter (HBA) |
|
 |
 |
 |
|
